Parametric CAD with constrained sketches, feature history, assemblies and partial Fusion design import.
Description
An independent parametric CAD application with constrained sketches, feature history, parameters and assemblies. Imports Fusion F3D/F3Z designs with supported history and Inventor IPT part bodies, alongside other CAD formats. Uses Qt and Open CASCADE with a Rust model, solver and import layer.
Status and compatibility are maintainer-reported. Inclusion is not an independent verification or certification.
Development status
Experimental
Compatibility
Partial (claimed)
Languages
Rust, C++
Platforms
Windows, Linux, macOS
License
MIT
Known limitations
Early active development; format support is maintainer-reported. Inventor IPT import currently brings bodies without design history. Native Fusion/Inventor export and full behavioral parity are not claimed. Direct modeling and some loft combinations remain incomplete. macOS targets Apple Silicon.
Repository activity
GitHub stars
75
Forks
5
Last push
Repository state
Not archived
Last successful update:
GitHub statistics are refreshed approximately every 24 hours.

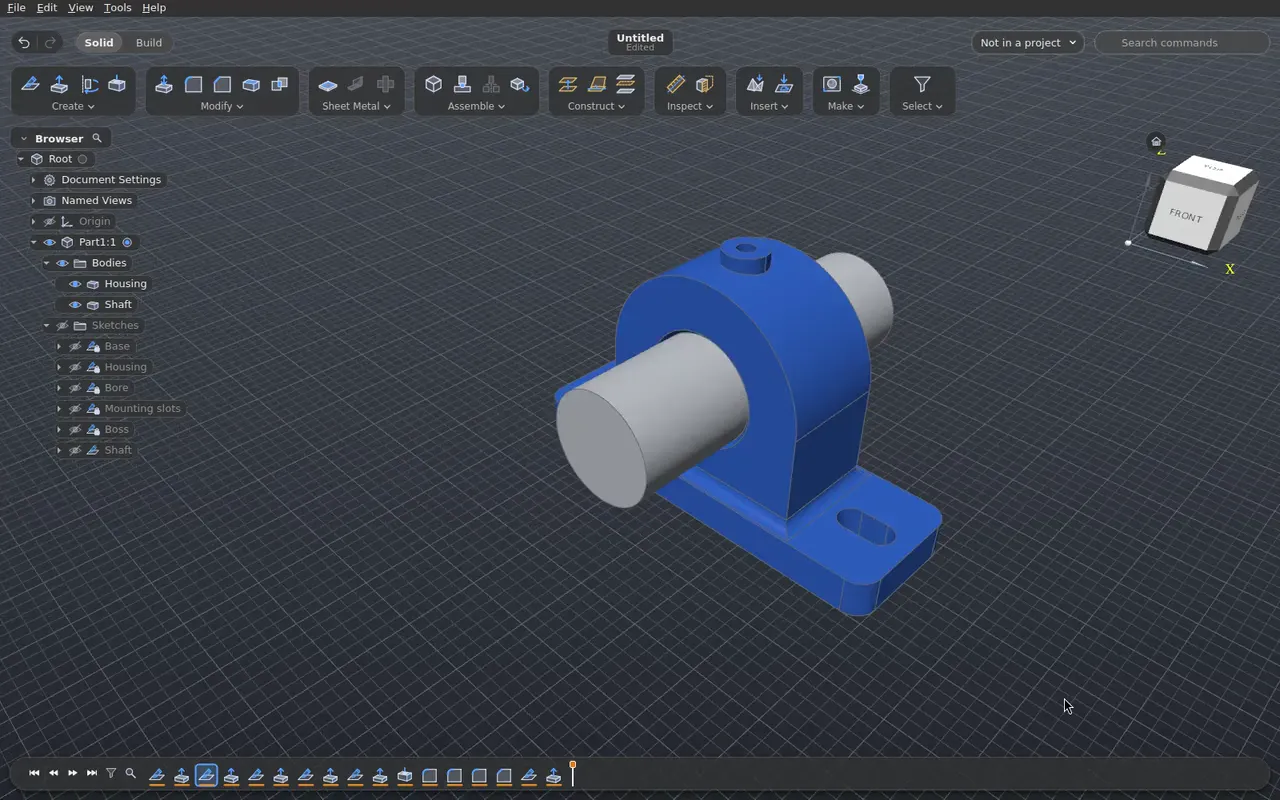

Screenshot unavailable. Mitcad: mechanical part in the modeling workspace.
Screenshot unavailable. Mitcad: dimensioned sketch and constraint controls.
